Chapter 4: Rain Screens
IN THIS LESSON

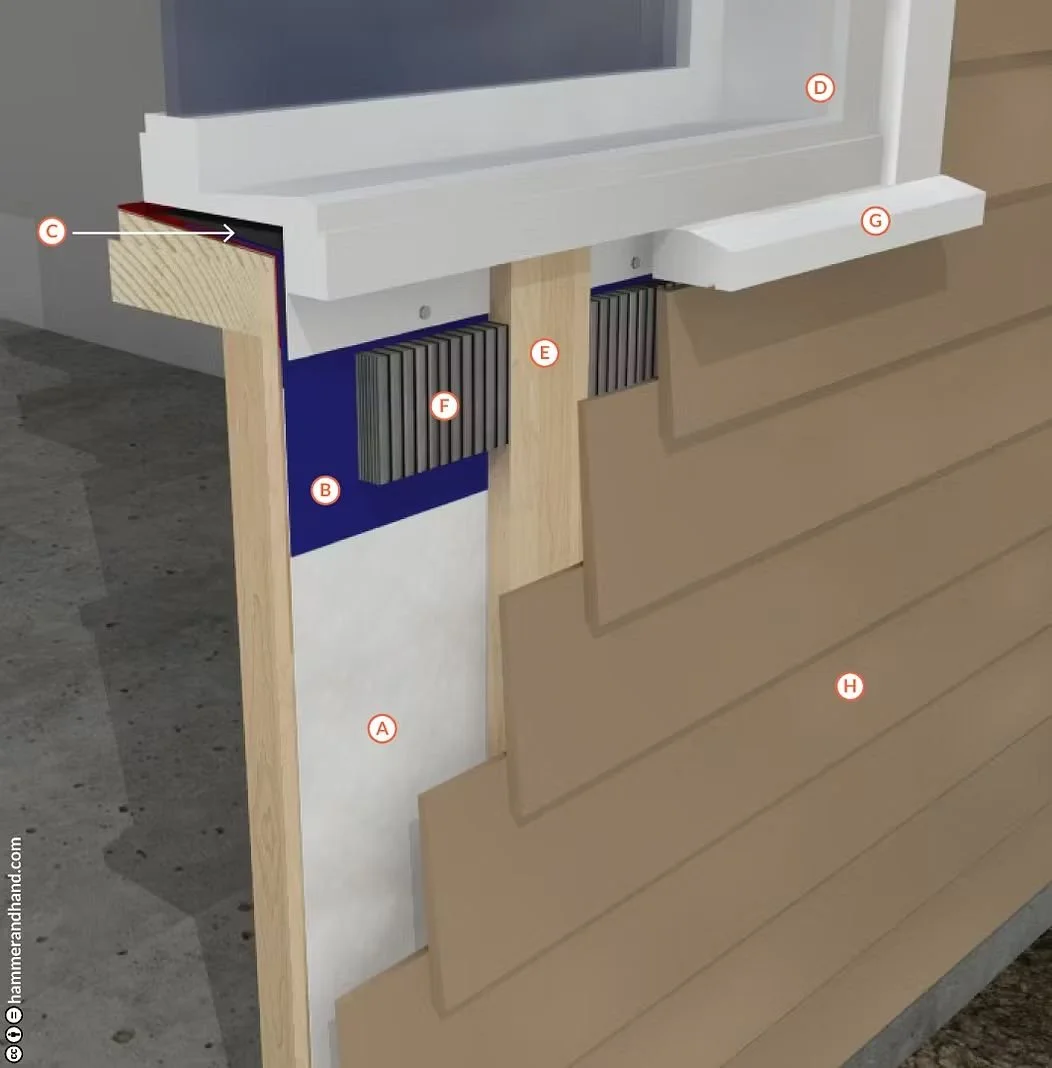

A. WRB (WATER-RESISTIVE BARRIER)
B. TRANSITION STRIP
C. SHIMS SUPPORTING WINDOW
D. INSTALLED WINDOW
E. FURRING
F. COR-A-VENT SV-5
G. TRIM
H. CLADDING

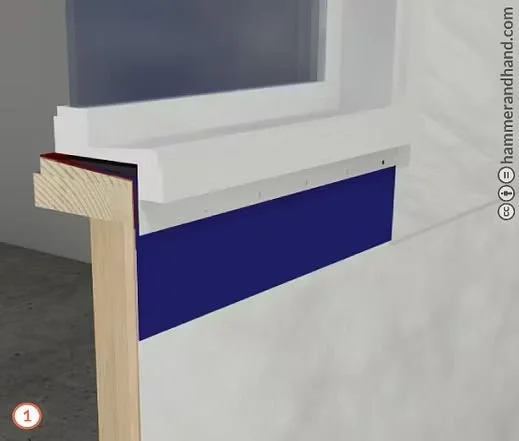

Layer on WRB. Layer in a shingle method starting at the bottom and lapping top over bottom.
Install vertical furring to correspond with the framing method (aligned with vertical framing members).
Use untreated 1×4 furring.

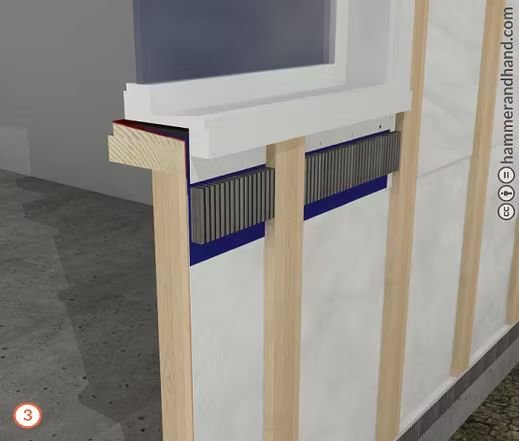

Cut pieces of Cor-A-Vent SV-5 to fit flush in between furring below window.

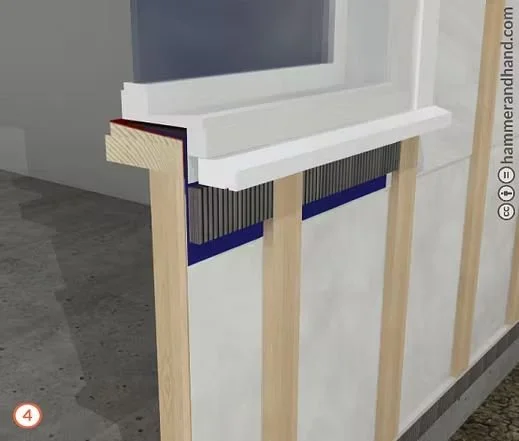

Attach trim.
Can be nailed to furring.

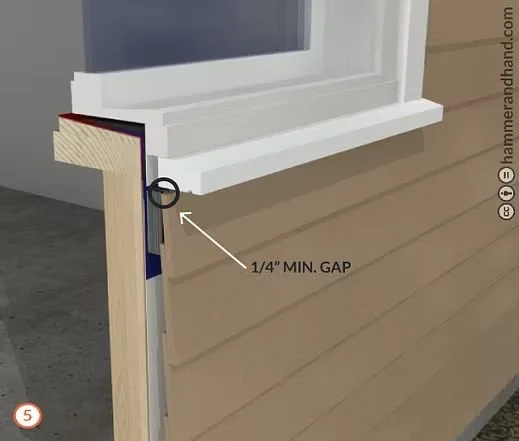

Install siding to complete the rain screen.
-
