Chapter 4: Rain Screens
IN THIS LESSON

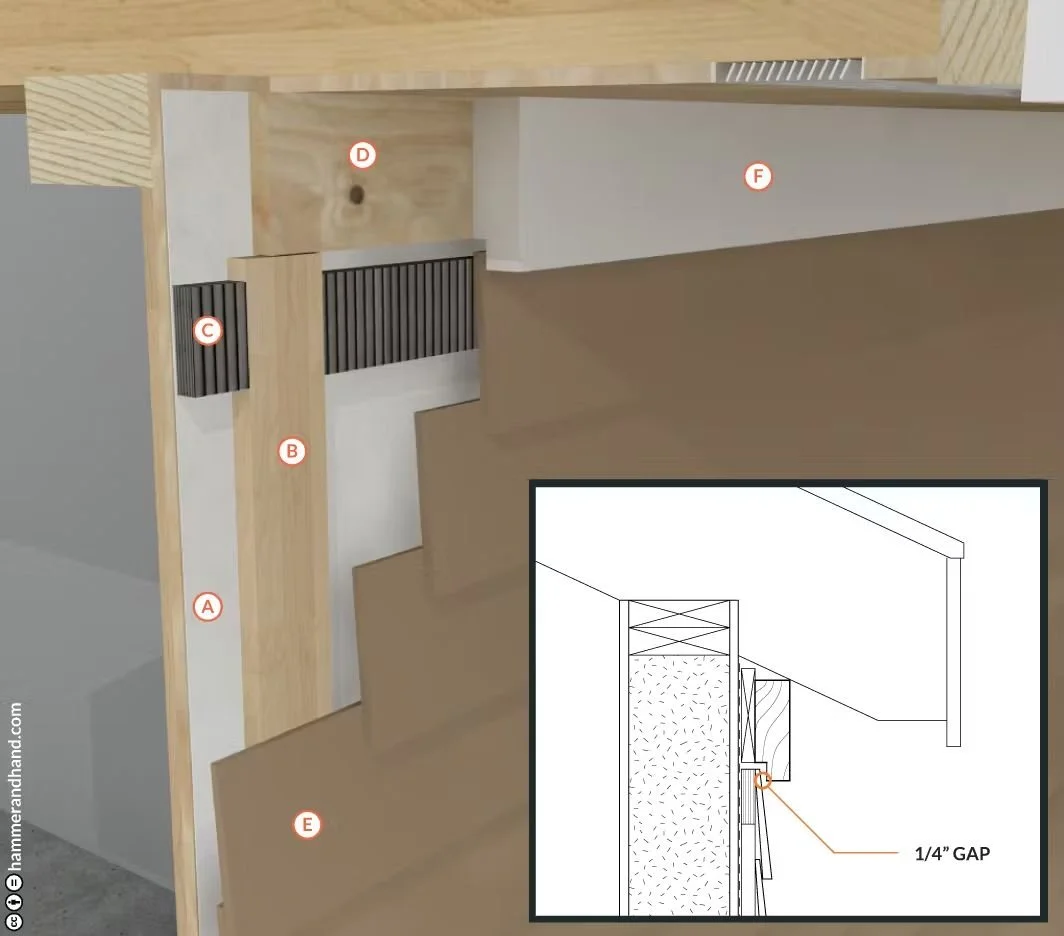

A. WRB (WATER-RESISTIVE BARRIER)
B. FURRING
C. COR-A-VENT SV-5
D. TRIM BLOCKING
E. CLADDING
F. TRIM

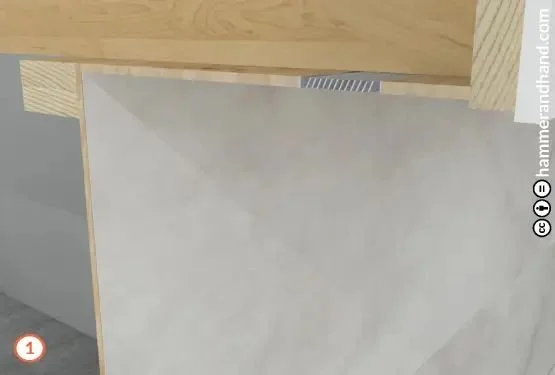

When the WRB is complete and lapped correctly, the rain screen installation begins.

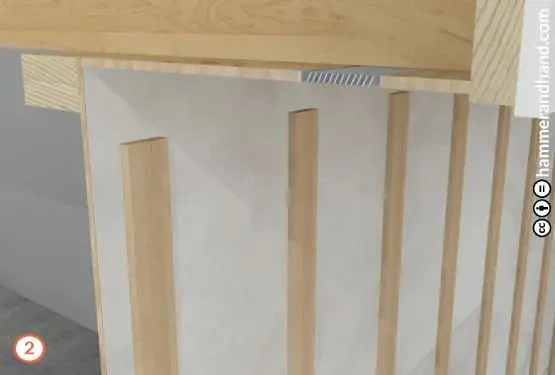

Install vertical furring to correspond with the framing method (aligned with vertical framing members).
Use untreated 1×4 furring.

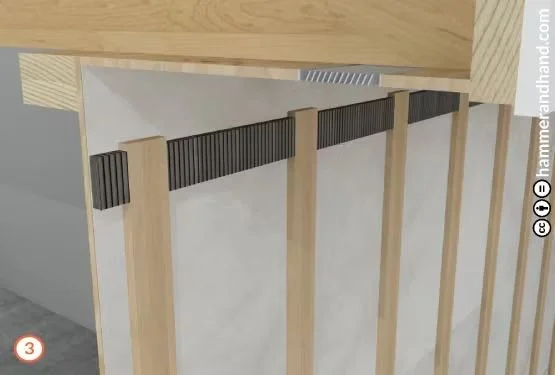

Attach Cor-A-Vent SV-5 insect blocker strip between furring.

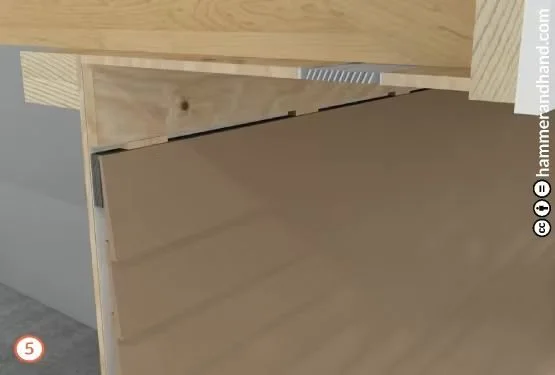

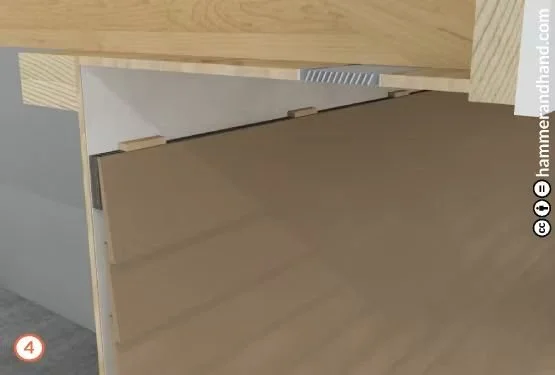

Attach siding.

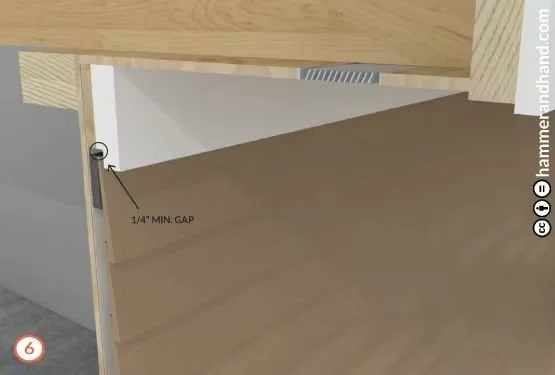

Install blocking to attach the rabbeted trim to.
-
