Chapter 4: Rain Screens
IN THIS LESSON

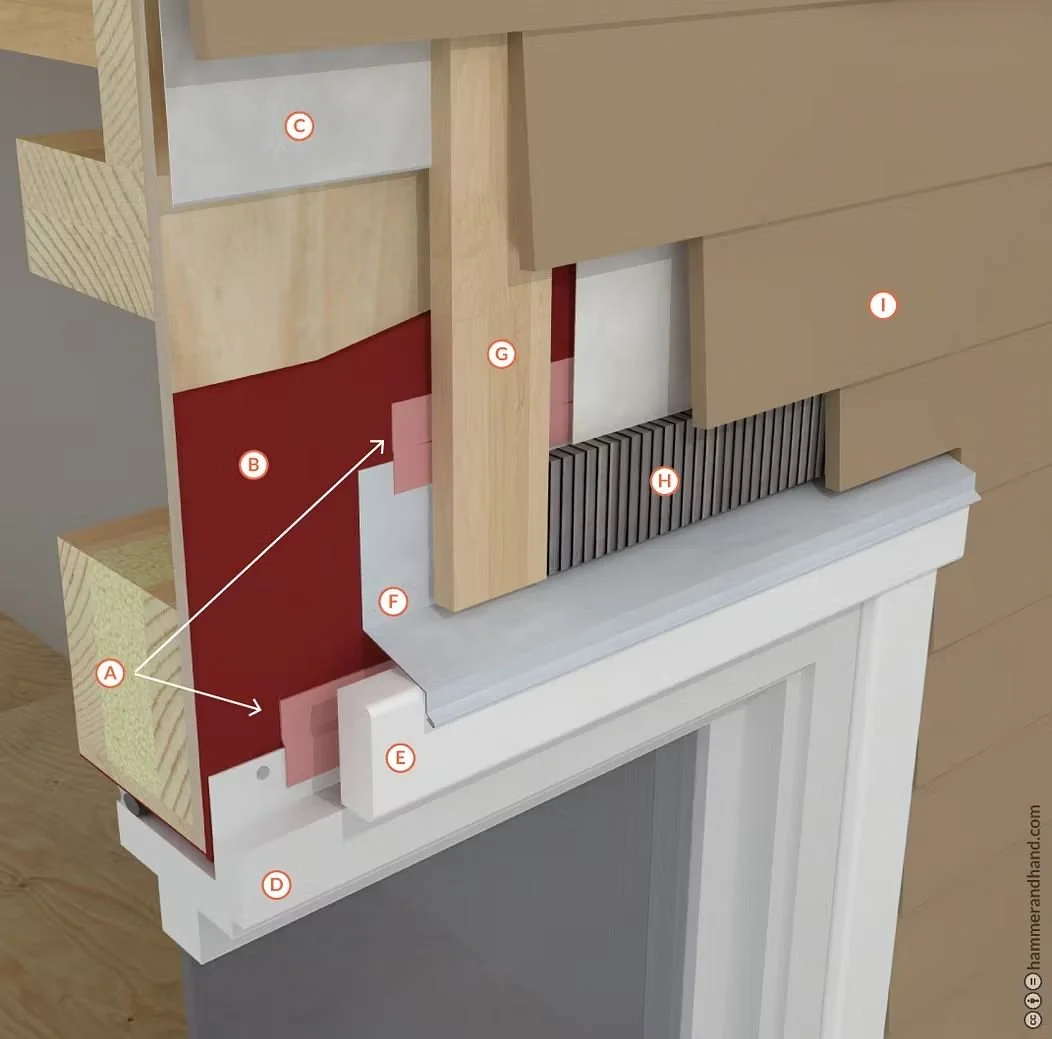

A. JOINT & SEAM FILLER
B. FASTFLASH
C. WRB (WATER-RESISTIVE BARRIER)
D. INSTALLED WINDOW
E. TRIM
F. HEAD FLASHING
G. FURRING
H. COR-A-VENT SV-5
I. CLADDING
Layer on WRB. Layer in a shingle method starting at the bottom and lapping top over bottom piece.

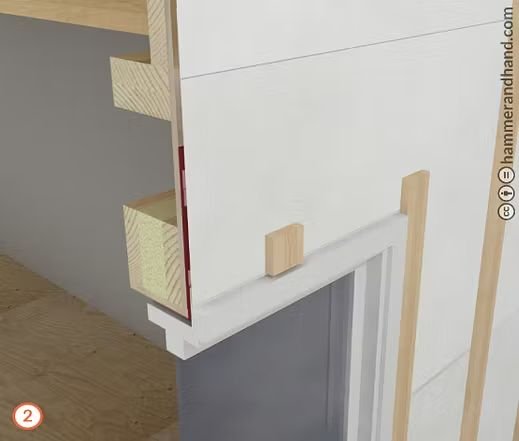

Install vertical furring to correspond with the framing method (aligned with vertical framing members).
Use untreated 1×4 furring.

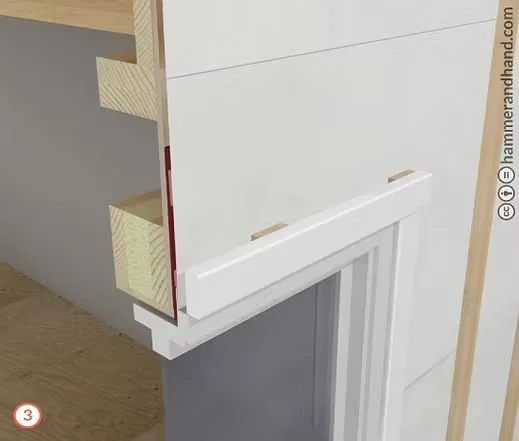

Install trim.
Cut a slit in the WRB, fold up, and use tape to hold the flap out of the way while the head flashing is installed.

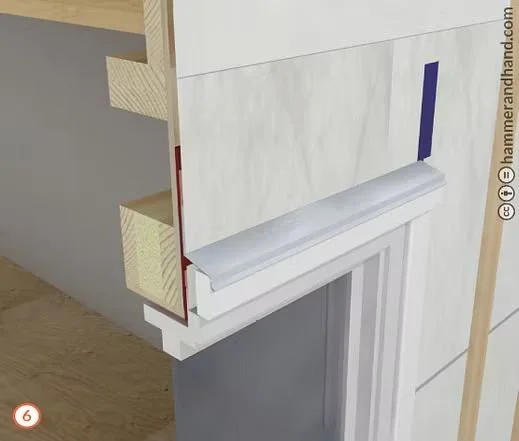

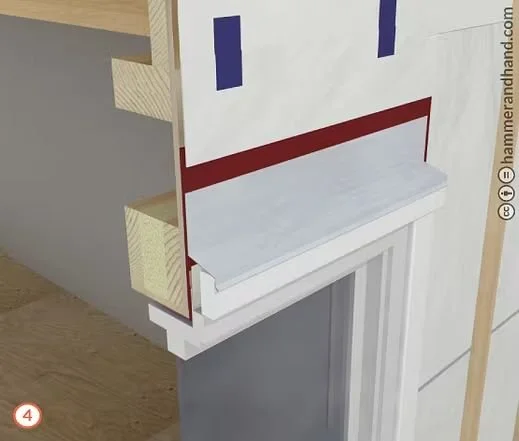

Attach head flashing.

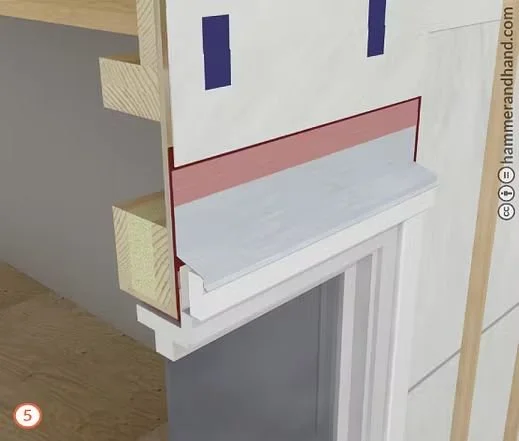

Apply Joint & Seam Filler to the top of the back leg of the head flashing.
Tool Joint & Seam Filler into place.
Fold WRB flap back down and tape the slit to prevent water intrusion.

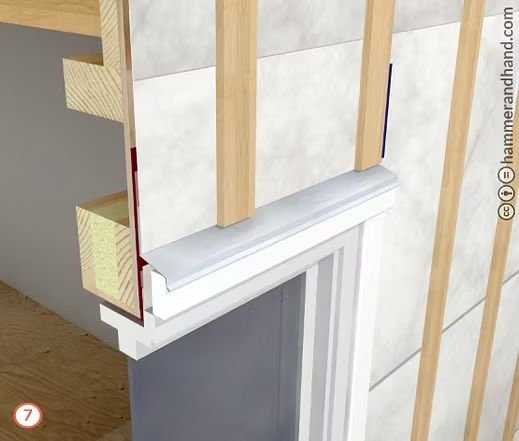

Attach remaining rain screen furring above head flashing.

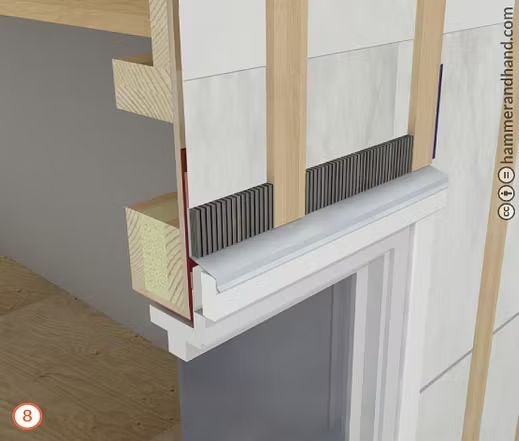

Install Cor-A-Vent above the window.

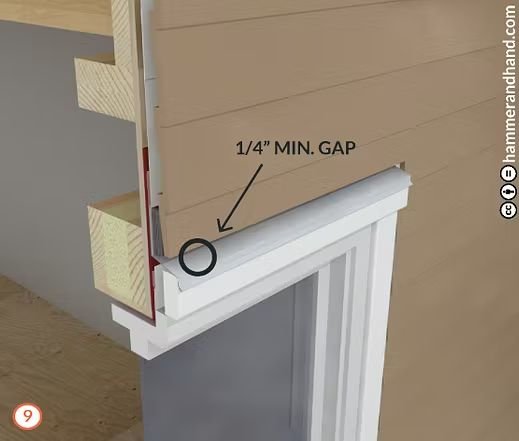

Complete rain screen by installing siding.
-
